2-Axis Live
Milling Head
Retrofit precision milling capability onto your existing large 5-axis CNC machine — without replacing the platform. Designed, engineered, and built in-house by Schienke.
Product Photo Coming Soon
Replace with milling head image
Loading 3D Model
Scroll to explore
2-Axis Live Milling Head
Schienke Products, Inc.
Equipped by

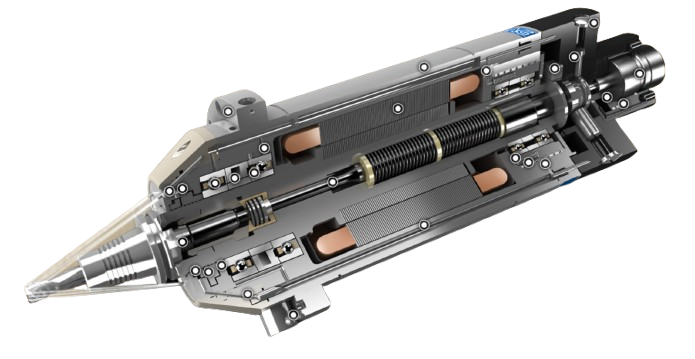

The Schienke 2-axis live milling head runs Ibag high-frequency spindles — Swiss-engineered precision components trusted in aerospace and high-precision manufacturing worldwide.
- High-frequency precision spindle technology
- Swiss-engineered for tight tolerances
- Proven in aerospace & automotive environments
What Makes It Different
The Schienke 2-axis live milling head is built to address a real gap in the market — bringing live milling capability to large 5-axis platforms that previously couldn't access it.
Live Milling Capability
Adds driven milling capability to machines that previously only offered fixed tooling, expanding the range of operations possible on your existing platform.
Retrofit-Ready Design
Engineered specifically for retrofit installation onto large 5-axis CNC machines. No major structural modifications to the host machine required.
Independent 2-Axis Control
Two independently controlled axes provide the orientation range needed for complex multi-face part machining in a single setup.
Precision-Ground Components
Every critical component is precision ground in-house by Schienke to the same exacting tolerances we apply to our rebuild work.
Multi-Platform Compatibility
Designed to work with a range of large 5-axis CNC machine architectures. Contact us to confirm compatibility with your specific machine.
Built In-House by Schienke
Designed, manufactured, and supported entirely by our team. When you need service, you call the people who built it — no middlemen, no mystery.
Compatible With
The Schienke 2-axis live milling head is designed to retrofit onto large 5-axis CNC machining centers. Our engineering team evaluates compatibility on a machine-by-machine basis to ensure the installation meets our standards for fit, function, and performance.
We are actively expanding the list of tested and supported machine platforms. If you don't see your machine listed, contact us — we may already be working on it, or can evaluate your specific configuration.
Not sure if your machine qualifies? Contact us with your machine details →
- Large 5-axis horizontal machining centers
- Large 5-axis vertical machining centers
- Gantry-style 5-axis milling machines
- Large turning centers with milling capability
- Boring mills with 5-axis heads
- Other configurations — contact us to discuss
Technical Specifications
Full technical datasheet available upon request. Contact us for detailed engineering specifications.
| Parameter | Specification |
|---|---|
| Number of Axes | 2 (independent) |
| Axis Travel | Contact for Details |
| Spindle Speed Range | Contact for Details |
| Taper / Tool Interface | Contact for Details |
| Control Interface Compatibility | Contact for Details |
| Power Requirements | Contact for Details |
| Unit Weight | Contact for Details |
| Coolant Compatibility | Contact for Details |
| Typical Lead Time | Contact for Details |
| Warranty | Contact for Details |
Specifications are subject to change. Contact Schienke for current engineering data and application-specific details.
Interested in the 2-Axis Live Milling Head?
Contact our team for a consultation, compatibility assessment, and detailed specifications.
Request Information
